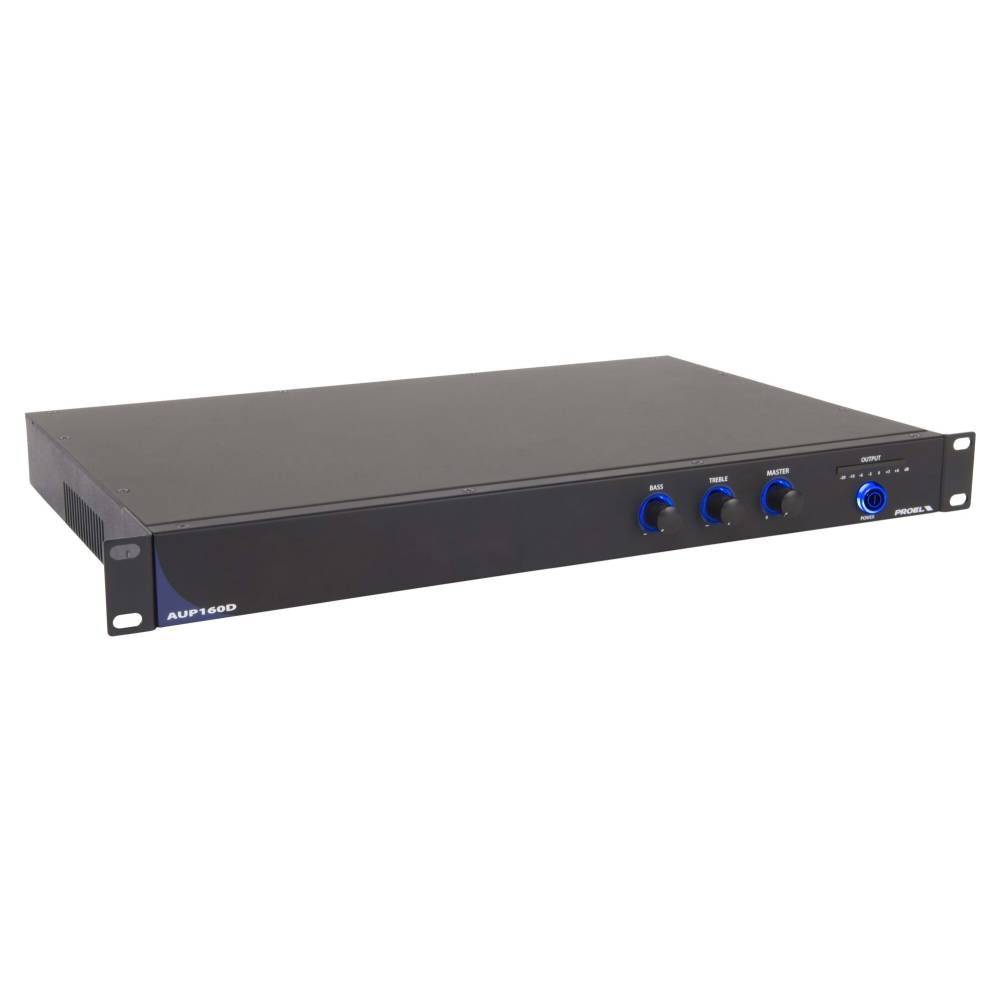

Power Amplifier 160W PROEL PA AUP160D

This new series of audio power amplifiers was designed to fulfil an evolving market in the most flexible and professional manner.

The new range responds to precise operating criteria and was designed and tested to guarantee total reliability of use, also with continuous operation.

Thanks to the use of power supply switching with SMPS (switch mode power supply) technology and to the constant voltage output 70/100V obtained electronically without transformers, it was possible to design the amplifier in only two rack units, succeeding in containing the weight and size.

• Model: AUP160D
• Output: power RMS 160W
• Inputs: 1 x balanced line Input
• Sensitivity: Line: 1V/47kΩ – variable gain 600Ω

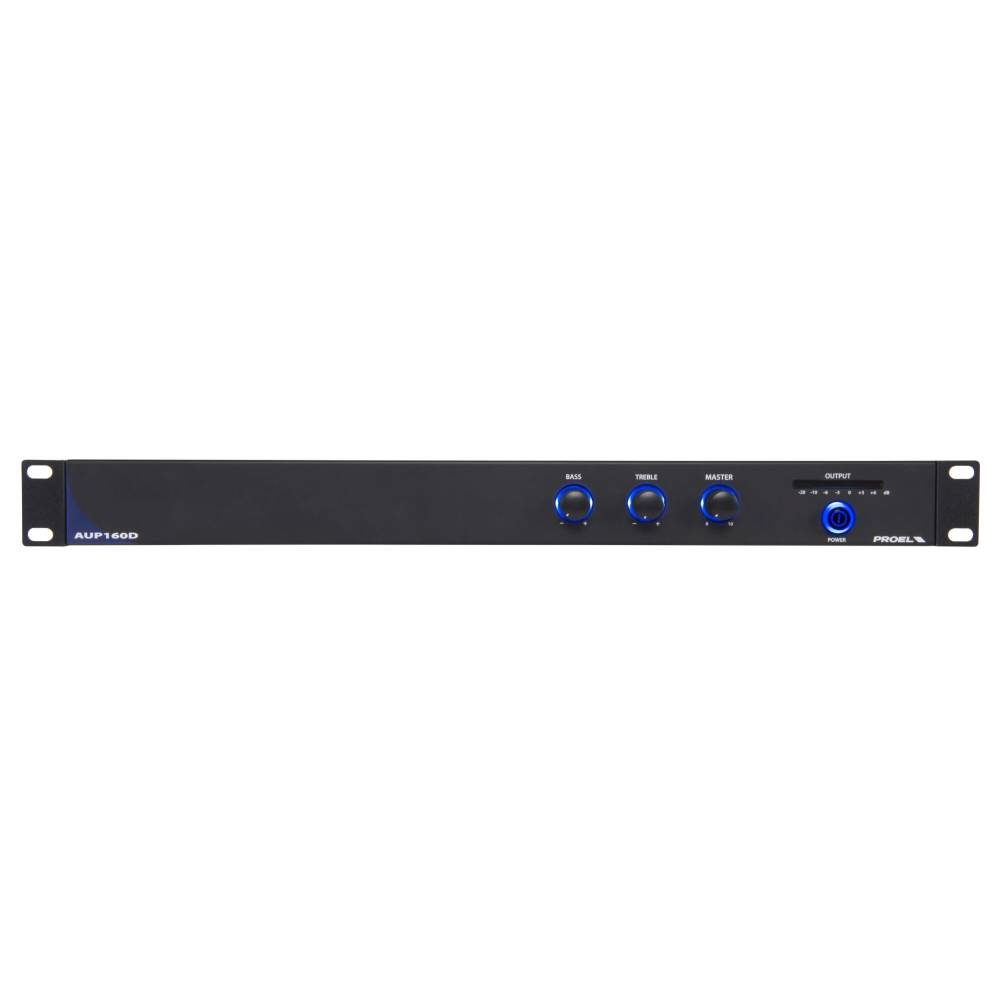

• Controls: Master volume control – Treble tone control – Bass tone control
• Loudspeakers outputs: 100/70V/4Ω
• Frequency response: 80Hz -16KHz (-3dB)
• Distortion (THD): < 0.5% (@ Pnom 1KHz)
• S/N Ratio: ≥80dB Power Supply: autoswitch 100-240V~ 50/60Hz
• Operating temperature: 0 -40°C

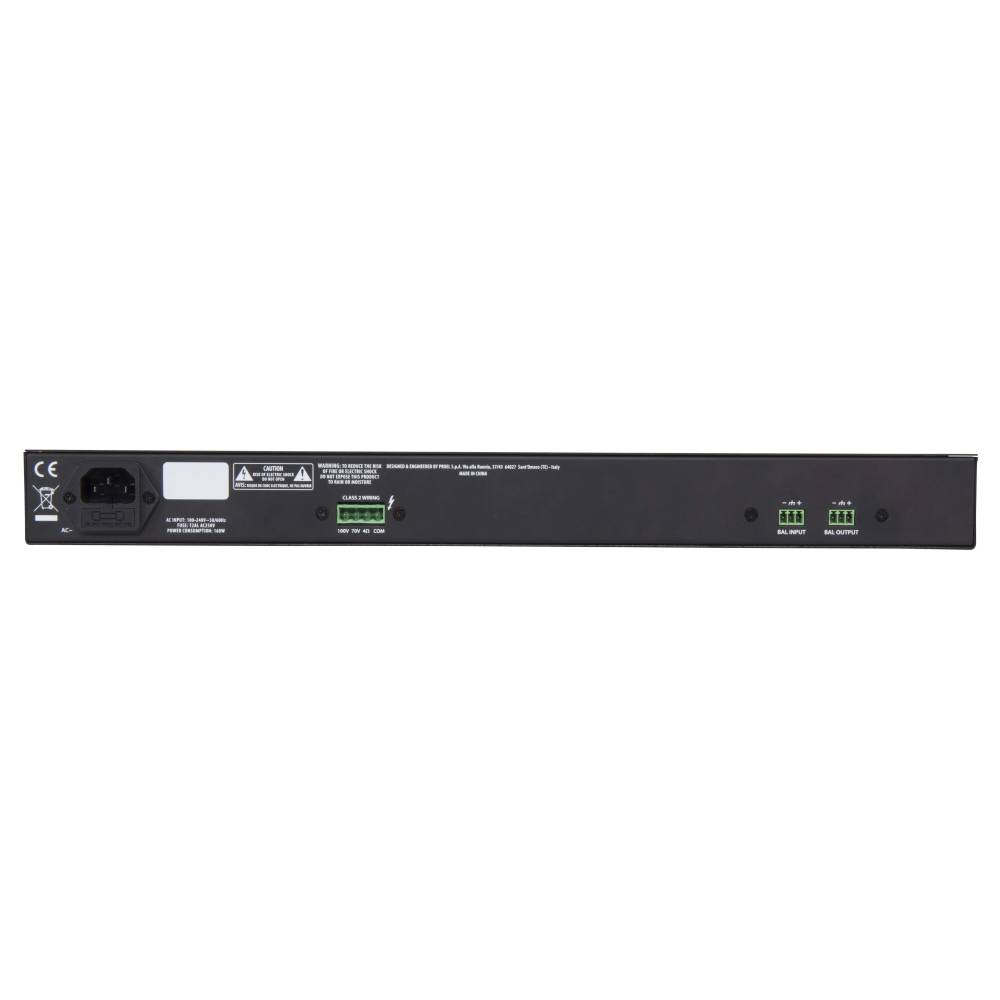

• Input/Output Connectors: terminal block
• Power Consumption: 160VA
• Dimensions (LxHxP): 439 x 44 x 300 mm – 483 x 44 x 300 mm – 1U rack19”
• Weight: 4.5Kg
