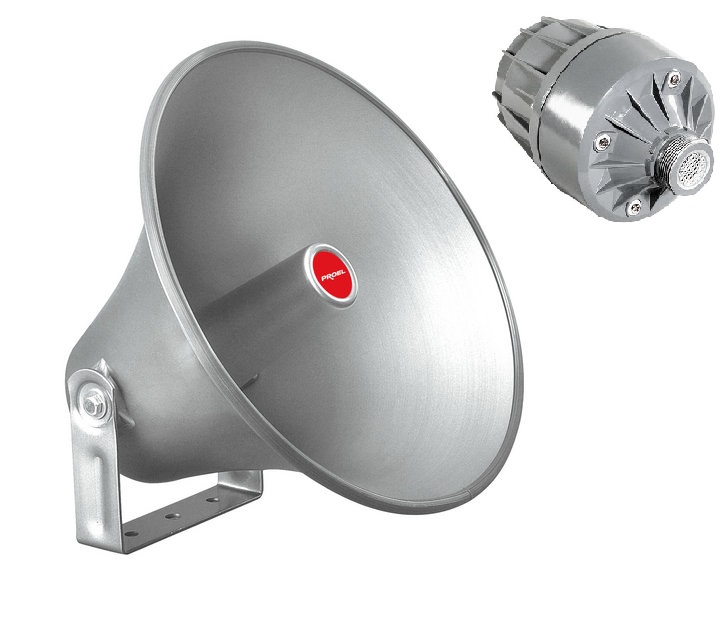

Driverless horns completely built in aluminium, round shape, grey painted, rugged, light, rain and UV rays resistant. Supplied with mounting bracket. This horn is ideal for outdoor operations like stadiums, sports hall, parking, motor-vehicle on board advertising and all applications where speech intelligibility is important. This horns has been designed to be used in conjunction with drivers adopting W-18N 3/8′ plugs. Suggested driver: PROEL HD60T.
HD60T is provided with internal line transformer, allowing long distance application. This driver has been designed to be used in conjunction with PROEL horns or to substitute other drivers with W-18N 3/8″ plugs. HD drivers provide highly intelligible sound reproduction. The use of very high quality materials (aluminium waterproof enclosure) allows this driver to be used in the worst environmental and atmospheric conditions.
SPEAKER HORN
- Model: H16R
- Type: Horn Speaker
- Speaker/s: Horn without driver
- Coverage Angle 1KHz/4KHz (-6dB): 80º / 65º
- Construction materials: Aluminium
- Colour: Gray
- Dimensions (W x H x D): Ø407 x 325mm
- Weight: (1.5 Kg (3.308 lb)
- Fixing system: U type steel bracket
- Protection rating: IP55
DRIVER
- Model: HD60T
- Type: Driver
- RMS power: 60/40/20W @ 100V
- Constant voltage binding: 100V
- Frequency response: 200Hz – 6KHz (-10dB)
- SPL (1W/m): 115 dB
- SPL MAX (Pmax @ 1m): 133 dB
- Construction materials: Aluminium
- Colour: Gray
- Weight:1.4 Kg (3.087lb)
- Fixing system: 1-3/8”W 18N mounting flange
- Protection rating: IP55
